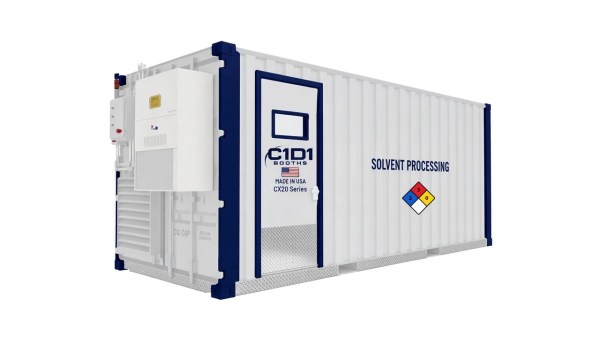

CX20 C1D1 Container Lab – 20'L x 8'W x 8'H
CX20 steel container C1D1 room, 20'L x 8'W x 8'H, for outdoor Class I Division 1 work. Choose a non-combo (empty classified container) or a combo with process equipment installed, insulated or non-insulated.
- 14-gauge steel, marine-grade epoxy finish
- Explosion-proof LED lighting, exhaust fan and strobe
- Control panel built to UL 508A, LEL gas detection, audio/visual alarms
- Factory installed; ships ready to set
Combo versions ship with process equipment installed. The insulated CX20 combo is priced online (see the CX20 lab package); other combo configurations are quoted. Request a Quote
- Freight shipping nationwide — lead time quoted with your order
- Engineer/peer reviewed design, built to ETL and UL 1389 standards
- UL 508A controls · drawing package for your AHJ
Details
Measures: 20' L x 8' W x 8' H. Part#CX-2088
Installation: Installation of all the hardware is done at our factory, there may be some items that have to be mounted back on site because of road travel restrictions.
Construction: Constructed out of 14 Gauge Steel, which exceeds 1 Hour fire wall.
Exterior Paint: Marine grade epoxy primer paint, with a direct to metal marine grade top coat for protection of the elements.
LED Light Fixtures: explosion proof lights LED Fixtures in the C1D1 extraction laboratory area. The LE551 Series is designed for environments having explosive atmospheres.
Man Door: man access door . fire-resistive Gray Right-Hand Flush Steel Prehung Commercial Door and Frame with Panic Bar and Hardware, third-party door hardware
Strobe Light Explosion proof: Class I Divisions 1 & 2 Explosion Proof LED Light with Emergency Battery Backup.
Flooring: High traffic grade linoleum flooring, This vinyl floor tile is ideal for use in commercial, residential, and institutional applications.
18" C1D1 Exhaust Fan with explosion proof motor - C1D1 Exhaust Fan: One (1) 18", 6-blade Acme exhaust fan used to pull gas from the C1D1 booth.
Control Panel: CM200 Control Panel Nema 4 enclosure (1) VFD sized for booth motors, Main disconnect of 40A with lock out tag out handle On/off light switch for booth lights On/off switch for fans E-stop button Light indicator on panel Make up and Exhaust Run lights Make up fault light Exhaust fault light Warning beacon on top of enclosure.
LEL Gas Detector: Stand Alone Explosion Proof Transmitter C1D1 Features Operates with or without a controller.
Audible and Visual Alarms: LED Blinking light element 24VAC/DC RD, Terminal element BWM 12-230VAC/DC BK, Buzzer element contin/pulse 24VAC/DC BK. UL Type classification Type 12.
Exit Signs: Glow-in-the-dark exit signs are critical in guiding employees and visitors out of your facility in an emergency.
Fire Suppression: Dry Chemical Suppression system installed. Activation and permit. Permit and activation locally by a fire contractor required
Motorized Damper: Extruded Aluminum, Number of Panels 1, 100 to 240 Voltage: This Dayton® power-open/spring-return, single-panel motorized channel-style damper regulates exhaust or supplies airflow in medium- and low-pressure commercial applications
Explosion Proof Outlet: The EPO-20A ensures secure electrical connections in Class I Division 1.
Electrical Panel: 125 Amp electrical panel with 2 breakers 125 A Amps, 120/240V AC, QO Circuit Breaker Type. Molded Case Circuit Breaker, 125 A, 240V AC, 2 Pole, Free Standing Mounting Style, QB Series.
Order yours with a C1D1 shipping container today.
