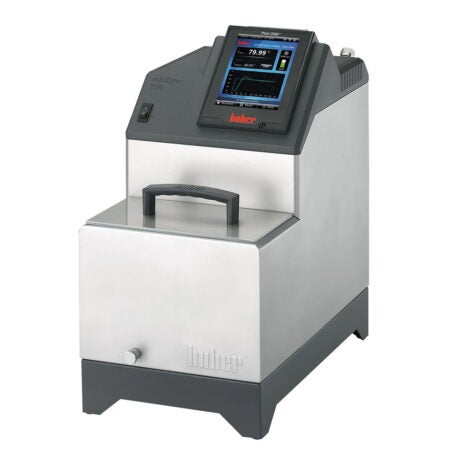

Huber Ministat 125 with Pilot ONE

$9,410.00

Huber Ministat 125 with Pilot ONE

*Notice: This item is subject to drop ship and may have a extended lead time*

Huber Ministats are the smallest cooling circulator in the world. Their small dimensions allow Ministats to be placed in the smallest of spaces, for example in a laboratory fume cupboard or inside technical plant. Despite their minimal size the systems are extensively fitted out and offer sufficient performance for temperature control of photometers, refractometers, viscometers, distillation apparatus, reaction vessels and mini-plants. The main applications are using external applications however the bath opening allows objects to be thermoregulated directly in a thermostat bath. A powerful pressure/suction pump with an infinitely controlled rotational speed ensures optimal circulation. The maximum pressure can also be regulated by an optional pressure sensor, meaning that sensitive glass reactors and apparatus can reliably be protected from breakage. Additionally, Ministats offer the Pilot ONE controller as standard with a colour TFT display and comfortable operator guidance. Analogue connections according to NAMUR are available via the optional Com.G@te module allowing Ministats to integrate into plant and process control systems.

The new multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

FEATURES:

Pilot ONE controller with Plug & Play technology
Precise temperature control
5.7“ touchscreen and comfortable menu navigation
Overtemperature and low level protection
Safety class III/FL (DIN 12876)
Powerful pressure/suction pump
Programmer with calendar and clock functions
2-point calibration
RS232 interface and Pt100 connection
Natural refrigerant

Ministat 125 Data sheet

 CLICK HERE 3 YEAR WARRANTY REGISTER

Please observe the notes on installation and/or the space requirements of our products





Ministat 125 Specifications

General Information & Temperature Controller

Temperature range

-25…150 °C

Temperature stability

±0.02 °C

Controller

Pilot ONE  (E-grade “Basic”)

Safety class

III / FL

Protection class

IP20

Dimensions (W x D x H)

225 x 370 x 429 mm  |  8.86 x 14.57 x 16.89 inches

Weight

25 kg  |  55.12 pounds

Heating / cooling capacity

Heating capacity

3 – 3,5  kW

Cooling capacity



Cooling machine

Air-cooled

Refrigerant (ASHRAE, GHS)

R290 (A3, H220) (0,066 kg)

Circulation pump

Pressure pump max.

22 lpm ; 0.7 bar  |  5.81 gpm ; 10.15 psi

Suction pump max.

16 lpm ; 0.4 bar  |  4.23 gpm ; 5.8 psi

Pump connection

M16x1 AG male

Permissible viscosity

50 mm²/s

Pump speed adjustable

Yes

Connections

Pt100 connection

Pt100

Digital interface

RS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.

5…35 °C

Bath opening W x D / BD

178 x 80 / 120 mm  |  7.01 x 3.15 / 4.72 inches

Bath volume

2.75 Liters  |  0.73 gal

Filling volume min.

2 Liters  |  0.53 gal

Power supply

110-120V 1~ 60Hz

Current max.

11,5 A

Fusing

16 A
