Add ons


Premium Electrical Kit CPM3

  • PLC
  • Motor Starter
  • UL Listed Control Panel
  • Variable Speed drive
  • Air Sensor control
  • Air detection sensor
  • E STOP For service
  • Emergency Purge Button
This control will comply with CID1 booth and Extraction booths to increase the air volume for 10% of the LEL and 25% of the LEL (Lower Explosion Limit per NFPA Requirements) Sensor sold separately Part#CPM3 Order our CPM2 variant for more.



Double Doors

Large double door upgrade for any model C1D1 booth laboratory doors.


Fire Suppression System for Booth Model C or I

Fire suppression system kit for Model C or Model I C1D1 booths: Includes tanks, fusible links, Nozzles, Control head, interlock switch, S.S detectors, NDPA adaptor, corner pulleys and 100 foot of cable. Design included. Price excludes installation and consumables relating to the installation. * Part#FS-CI Local Fire company to activate and tag the system.


9' Chimney Kit with ARV - 18" Diameter

  • 9 Foot Chimney Kit w/ARV - 18" diameter
  • 3' Plain Duct, 3' w/ Clean Out Duct, roof flashing, rain collar, connection ring and automatic roof ventilator


Peer Reviewed Design Certification

Includes one Peer reviewed design certification. Compatible with any lab type! Valid in all legal states.   Part#PRDC


Motor Starter

Includes one Motor Control Starter 20A AC 3/4in Hub Size. Feed Thru Hub, 3R/7/9 Part#MTRSTR220V1PH



Inlet Make Up Air Fan Kit 18" Outside Mounted

MODEL HD fan is a direct drive, tube axial exhauster with the motor in the airstream. Capacities range from 1182 to 63,475 CFM and up to ¾ inch static pressure. The compact design provides easy installation. The HDD is designed to operate in any position and is furnished with mounting flanges on both ends for easy installation. All propellers are balanced to grade G6.3by AMCA 204. Heavy duty, all welded uncoated aluminum propeller is standard non sparking blades Standard Motor 1HP 208,220V Or 480V This Air Fan is compatible with Models: A,B,C,1, and Model I (Model I requires 2HP upgrade) CPM3 upgrade required for this selection********* Plenum and Filter Fan Kit included Part#INTK183PH



Height Extension

Includes 3 foot height lab extension for any C1D1 booth.


Process Breaker

40A process upgrade breaker box. Compatible with any control panel to increase your process capabilities. Part #PB40


M2A Series

  • Pre-calibrated and programmed for your solvent type.
  • Stand Alone Explosion Proof Transmitter
  • This gas detector head operates with or without a controller
  • Direct digital readout with OLED cold temperature display
  • Available gases include
    • LEL, O2, H2S, CO, CO2, and 100% Vol CH4
    • Toxic gases include NH3, AsH3, Cl2, ClO2, HCN, & SO2
  • Infrared sensor for combustibles and CO2
  • 4-20 mA & digital Modbus outputs standard
  • 2 fully programmable alarm relays & fail relay
  • Non-intrusive calibration via magnetic wand
  • Explosion proof construction
  • Patented water repellent sensor cover
  • User friendly setup, push buttons & OLED menus
  • Long-life sensors (2 + years typical)

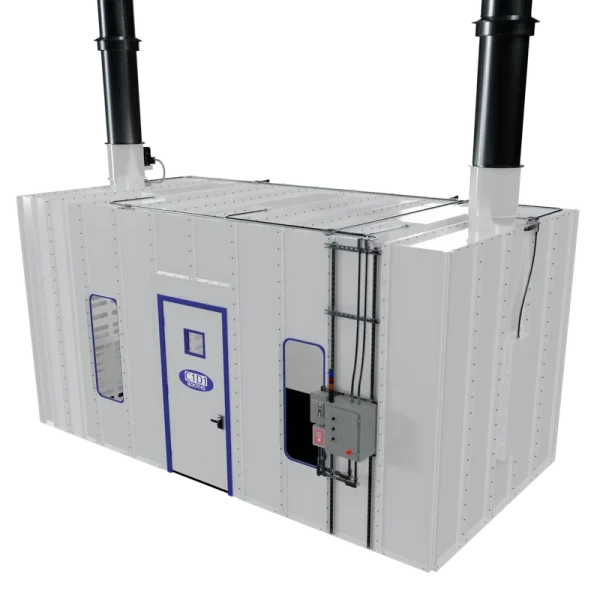

Model I Lab-10’W x 9’H x 20’L



Dimensions : 10′ W x 9′ H x 20′ L

Construction:  18 gauge, galvanized sheet metal panels. Assembly makes the panels sealed for airtight joints. A 14 gauge angle is used to anchor the CID1 booth to the floor. The CID1 proof panelboard turnkey booth will be constructed onto an existing concrete slab with no necessary preparation of slab. Part#I10920



  • LEL Gas detection System
  • Fire Rated Front door
  • AEL High Velocity exhaust system
  • Standard CP200 Control Panel
  • Dual Audio and Visual Alarm system
  • High Efficiency Filtration system
  • Self Luminous Exit Hardware
  • Professional Peer reviewed design
