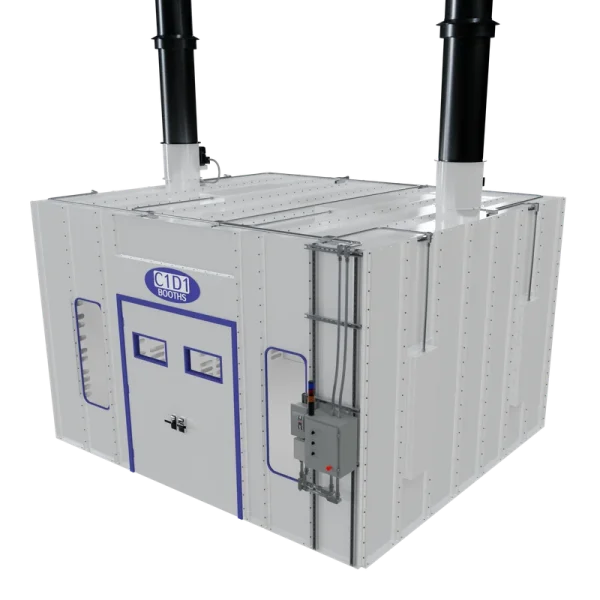

Model 3 C1D1 Booth – 14'W x 9'H x 16'L
SKU: 3-14916
From $40,500
Prefabricated Class I Division 1 room, 14'W x 9'H x 16'L, offered in C1D1 or C1D2 configuration.
- 18-gauge galvanized, sealed panels; anchors to existing slab
- LEL gas detection with dual audio/visual alarms
- High-velocity exhaust and filtration; CP200 control panel built to UL 508A
- Fire-resistive front door and self-luminous exit hardware
- Engineer/peer reviewed design
- Freight shipping nationwide — lead time quoted with your order
- Engineer/peer reviewed design, built to ETL and UL 1389 standards
- UL 508A controls · drawing package for your AHJ
✓NEC ARTICLE 500C1D1 Design✓NFPA 33Spray Application✓PEER REVIEWEDEngineer Reviewed✓UL 508AControls✓ETL / UL 1389Built to Standards
Details
Dimensions: 14' W x 9' H x 16' L
Construction: 18 gauge, galvanized sheet metal panels. Assembly makes the panels sealed for airtight joints. A 14 gauge angle is used to anchor the C1D1 booth to the floor. The C1D1 booth will be constructed onto an existing concrete slab with no necessary preparation of slab. Part#3-14916
Extraction Lab Includes
- LEL Gas detection System
- fire-resistive Front door
- High Velocity exhaust system
- Standard CP200 Control Panel
- Dual Audio and Visual Alarm system
- High Efficiency Filtration system
- Self Luminous Exit Hardware
- Professional Peer reviewed design
