SH Scientific UL 9.0 CuFt Vacuum Drying Oven w/ 5 Heated Shelves 150°C 110V
SH Scientific UL 9.0 CuFt Vacuum Drying Oven w/ 5 Heated Shelves 150°C 110V
The SH Scientific vacuum ovens are a top of the line product compared to others that are currently on the market while maintaining an affordable price. Our ovens come with a UL and CE certification which is required by many states and provides a higher standard for product production, safety, and lifespan. Each oven comes standard with 5 Microprocessor PID Membrane Touch Digital Controllers for ease of use and superior quality. We also provide an all stainless-steel tubing interior, oil filled vacuum gauge, stainless steel vacuum vent & valve, and a 2-year warranty. All ovens come with 5 high quality individually heated aluminum shelves for extremely accurate temperature uniformity and customization. Users can stack our ovens with ease and manifold vacuum lines together for ease of use.
These ovens will provide superior quality and allow users to greatly reduce drying times by pulling a uniform vacuum level inside the oven. Safety features include and electricity leakage circuit breaker and an over temperature controller.
These ovens come equipped with the highest quality parts to serve you better and to make your equipment last longer.
| SPECIFICATIONS | |
| Model | SH-VDO-90NG |
| Temp Range | Ambient +5℃ to 150℃ (Ambient + 9℉ to 302℉) |
| Temp Uniformity | ± 1°F at 105°F |

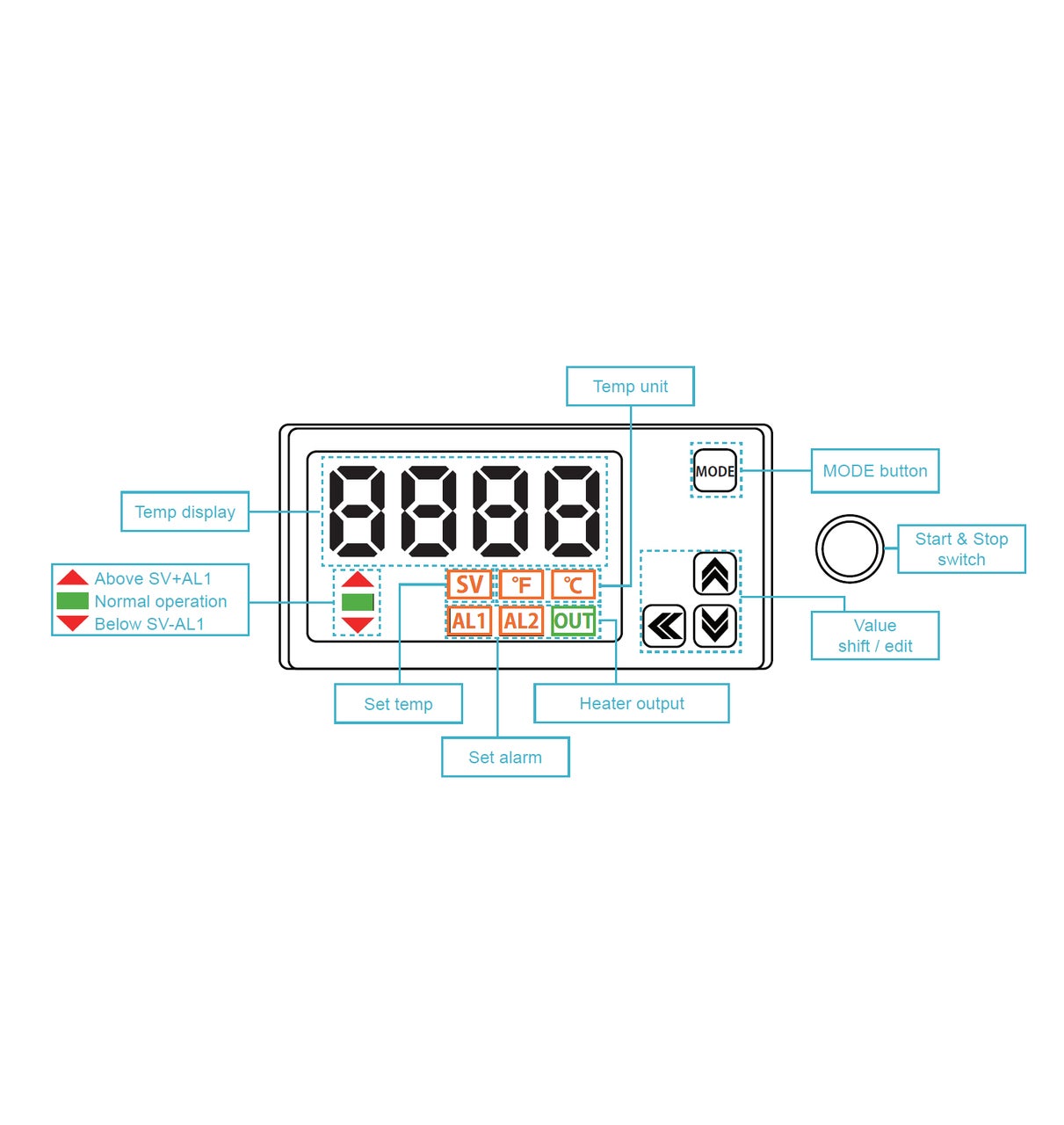

| Temp Controller | Microprocessor PID Membrane Touch Digital controller |
| Vacuum Resistance | 0 to 760 mmHg (0 to 0.1MPa) |
| Heater Capacity | 1.5 kW |
| Capacity | 252 L | 9.0 CuFt |
| Dimension Internal | 600×700×600(mm) | 23.62×27.55×23.62(inch) |
| Dimension External | 953×947×822(mm) | 37.51×37.28×32.36(inch) |
| Internal Area | 15,378 Cubic Inches |
| Area of one Shelf | 575×680(mm) | 606 Sq in |
| Total Area of 5 Shelves | 3030 Sq in |
| Net weight | 252 Kg | 555 Lbs. |
| Material Internal | Stainless Steel |
| Material External | Steel Plate with Powder Heating Coated |
| Material Packing | Silicon Rubber Packing |
| View Window | Tempered Glass |
| Shelves | 5 EA |
| Electrical Requirements | 110-120V, 50/60Hz, 1Φ 13.6 A | 5-15P Plug Installed |
| Warranty | 2 Year |
| Safety | Over Temp. Controller & Electricity Leakage Circuit |
PACKING LIST
Model
SH-VDO-90NG
SH-VDO-90NG Oven
1
Shelves
5
Vacuum KF25 Valve
1
KF25 L-Type Pipe
1
KF25 Clamp
3
KF25 O-ring
3
3/8″ Silicone Tubing 6.5ft
1
KF25 to 3/8″ Hose Barb
1
Manual
1
