4″ Wiped Film Evaporator (WFE) Distillation Turn Key System – USA MADE

$45,000.00$76,000.00

Clear

4″ Wiped Film Evaporator (WFE) Distillation Turn Key System – USA MADE

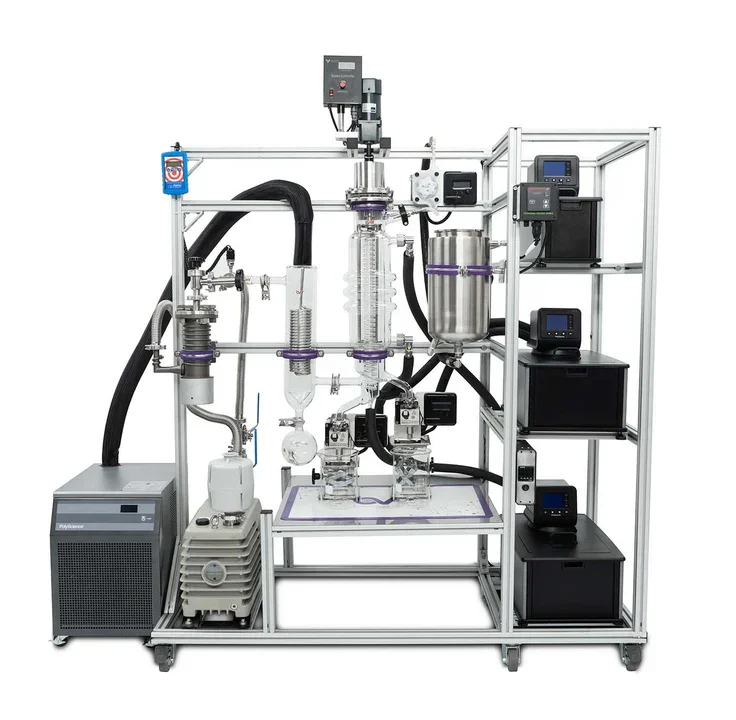

4″ BVV Wiped Film Evaporator

This system has a 1-2 week lead time.

The BVV™ 4″ Wiped Film Evaporator (WFE) is a full turnkey distillation kit that will will allow anyone to run a molecular distillation. With the magnetically driven wiper and high vacuum seals this system is able to achieve vacuum levels below 10 mtorr. The system has multiple temperature control apparatuses that allow the user to dial in specific settings that works best for their application. The maximum operating temperature of the outer jacket is 200°C with the standard circulators shown below. The maximum feed rate is up to 7LPH. On average, you can expect to flow 500-1000ml per hour. All heated circulators can be tailored to your specific needs, just ask our team of experienced account representatives!

The temperature controlled circulators will need thermal fluid that corresponds with the temperatures needed. Click here to browse fluids.

For a full list of ancillary equipment included in the kits please see the table below:

KIT Part of System Component Electrical Requirements (V / Ph / A)
WFE04-TK-01

  • Standard Model

Wiper Assembly BVV™ Stirring motor 120V / 1Φ
Vacuum System BVV™ Pro Series 35.3CFM Rotary Vane Vacuum Pump*

DigiVac Bullseye Precision Vacuum Gauge

220V / 3Φ

AA Batteries (4x)

Temperature Controlled Circulators Polyscience 7L

Polyscience 15L (2x)

120V / 1Φ / 10A

220V / 1Φ / 10A

Injection Beaker and Wrench 7LPH Peristaltic

Heated Hose

120V / 1Φ

120V / 1Φ

WFE04-TK-02

  • Upgraded Vacuum System
  • Upgraded Cold Trap

Wiper Assembly BVV™ Stirring motor 120V / 1Φ
Vacuum System BVV™ Pro Series 35.3CFM Rotary Vane Vacuum Pump*

Summit Research Diffusion Pump (SR-DP04A)**

DigiVac Bullseye Precision Vacuum Gauge

220V / 3Φ

180/264V / 1Φ / 10.5A

AA Batteries (4x)

Temperature Controlled Circulators Polyscience 7L

Polyscience 15L (2x)

120V / 1Φ / 10A

220V / 1Φ / 10A

Injection Beaker and Wrench 7LPH Peristaltic

Heated Hose

120V / 1Φ

120V / 1Φ

Cold Trap Polyscience IP100 120V / 1Φ / 11.5A
WFE04-TK-03

  • Upgraded Vacuum System
  • Upgraded Cold Trap
  • Outlet Pumps



Wiper Assembly BVV™ Stirring motor 120V / 1Φ
Vacuum System BVV™ Pro Series 35.3CFM Rotary Vane Vacuum Pump*

Summit Research Diffusion Pump (SR-DP04A)**

DigiVac Bullseye Precision Vacuum Gauge

220V / 3Φ

180/264V / 1Φ / 10.5A

AA Batteries (4x)

Temperature Controlled Circulators Polyscience 7L

Polyscience 15L (2x)

120V / 1Φ / 10A

220V / 1Φ / 10A

Injection Beaker and Wrench 7LPH Peristaltic

Heated Hose

120V / 1Φ

120V / 1Φ

Cold Trap Polyscience IP100 120V / 1Φ / 11.5A
Outlet Pumps Beaker and Wrench Gear Pump (2x)

Beaker and Wrench Heat Pad PID Controller

120V / 1Φ

120V / 1Φ





Notes:

*The Rotary vane vacuum pump paired with this kit uses 3Φ power, a smaller single phase pump can be substituted if needed. Substitution will have an impact the performance versus the standard unit.



**The Summit Research diffusion pump must be water cooled, if facility water cooling is not an option an additional chiller may be needed, a Polyscience 1HP Durachill is recommended. An air cooled diffusion pump can be provided as a substitute. Substitution will have an impact the performance versus the standard unit.
