GD – 10H-MS

GD – 10H-MS

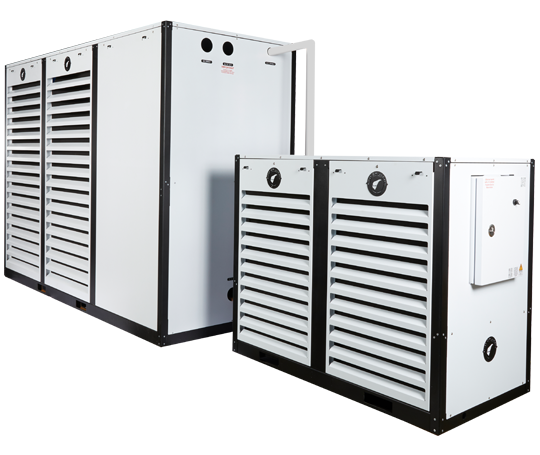

The G&D Modular Series Chiller is available in capacities ranging from 10 HP to 54 HP and are equipped with all of the features of our standard package chiller design. The difference is that these units feature an oversized process pump and massive oversized glycol reservoirs with auxiliary ports for future chiller modules. As you phase in expansion these expandable chillers provide you with the opportunity to phase in chiller modules, increasing chilling capacity as you grow. G&D Chillers is leading the way in providing you with the solution for cost effective growth with modular glycol reservoir chilling.

Specifications:

  • (WxLxH): 48” x 108” x 73”
  • Tank Volume: 230 Gallons
  • Process Pump: 5 HP
  • Chiller Pump: 1 HP
  • GPM @ 25PSI: 150 GPM
  • Operating Weight: 1700 Lbs.
  • Connection Size: 2″
