GD – 10H

GD – 10H

Single stage air-cooled chillers are built with a compact design that is simple to operate and maintain. All Single-Stage Chillers are built on a rugged and fully welded, powder coated steel platform, then enclosed in non-corrosive housings to provide years of dependable operation. All are ETL listed, factory charged and run tested.

Key Specs:

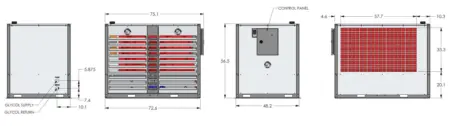

• (WxLxH): 48” x 73” x 61”
• Tank Volume: 110 Gallons
• Process Pump: 2HP
• GPM @ 25PSI: 65 gpm
• Operating Weight: 2320 lbs.
• Connection Size: 1.5″

Features:

• Complete refrigeration circuit
• Engineered high efficiency heat exchanger for maximum energy efficiency
• Glycol pump
• Dynamic fluid bypass valve
• Insulated stainless steel glycol reservoir with level indicator
• All insulated copper piping
• ETL 508A listed complete control panel with single point electrical connection, breakers, starters & safety switches

• High and low pressure controls
• Freeze stat safety switch
• High temp alarm
• Low ambient control
• Anti cycle timer to prevent short cycling of compressor
• On/pump down/off switch
• Compact microprocessor controller with communication capabilities

• Supply and return ball valves
• Fully powder coated steel frame
• Powder coated aluminum housing
• Louvered access panels for easy service and maintenance
• Factory run tested and fully charged with refrigerant
• Two year parts and one year labor warranty
