[You must have an NEMA L5-30 outlet installed.]

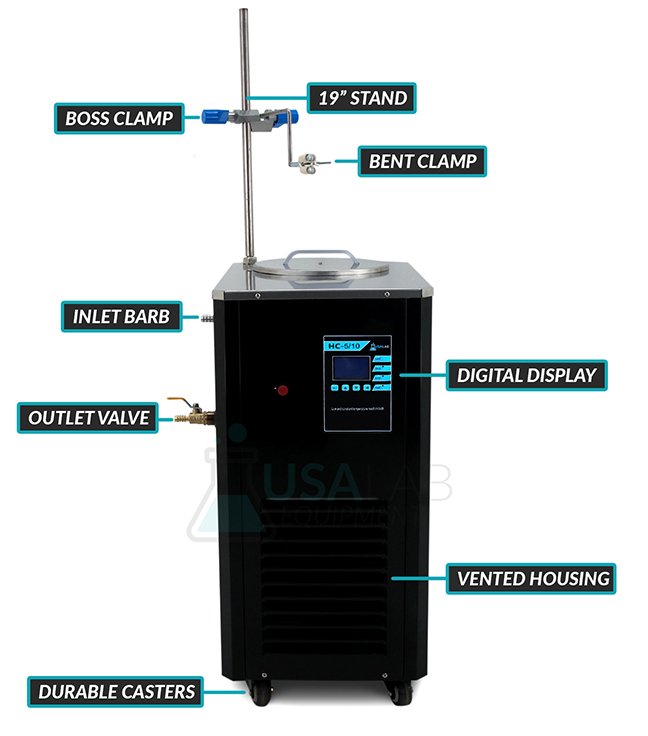

Need a recirculating heater chiller that is ultra quiet yet pumps efficiently? Look no further! Our all new HC-5/10 Heater Chiller is built for high flow rates and low/high temperatures. With a low temperature of -10°C and a high temperature of 99°C, this 110v heater magnetic chiller is a work horse that pumps 30L per minute!

Not intended for 24-hour operation, maximum operation time is 16 hours.

These work great for our Rotary Evaporators & Short Path Systems!

HC510 Specifications
Model	HC-5/10
Reservoir Capacity	5L
Reservoir Dimensions:	8″ x 8″
Cooling Range	-10°C to 38.5°C
Heating Range	-10°C to 99°C
Power Requirements	110-120V 50-60Hz 30A Single Phase
Plug	5-30P plug, cannot be modified
Refrigerating BTUs	4,500BTU – 1,000BTU
Heating Element Wattage	1000W
Circulating Pump Wattage	100W
Temperature Accuracy	0.5°C
Pump Flow	30L/Min
Pump Pressure	2.2bar  Lift/height: 4m/12ft
Barb Size	1/2″
Refrigerant	R-404A
Dimensions	19″ x 14″ x 29″
Weight	100lbs
