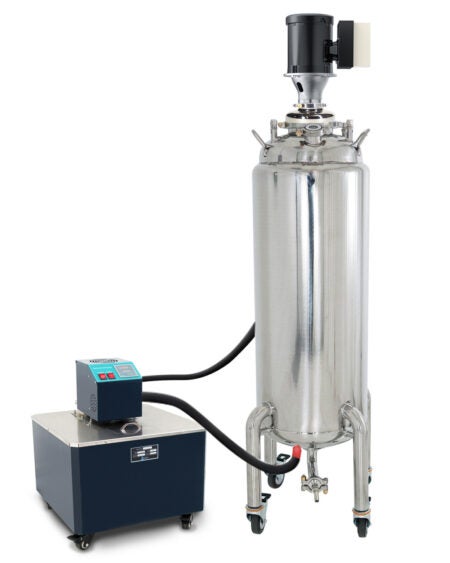

100L/200LB Mixing Solvent Tank w/ RH-30L and 1/2 HP USA Made Motor
100L/200LB Mixing Solvent Tank w/ RH-30L and 1/2 HP USA Made Motor
Our mixing vessel provides superior quality at an affordable price. With a 1/2 HP USA made variable speed motor you can begin mixing with ease and reliability. Each vessel comes with a 30L 4 kW heater for maximum heat transfer as well as a drain port for easy draining.
Upgrade today and see the difference.
| TANK SPECIFICATIONS |
| •Material: 304 Stainless Steel |
| •Capacity: 100L |
| •Lid Size: 6″ Tri-Clamp |
| •Tank PSI Rating: 150psi |
| •Motor Gasket PSI Rating: 3psi |
| •Lid Connections: (4 x 1/2″ Compression Ports) (1x 6″ Tri-Clamp x 3″ Tri-Clamp) |
| •Drain Connection: 1.5″ Tri-clamp ( to 1/2″ Barb) |
| •Exterior Dimensions: 21″ L x 22″ W x 65″ H |
| HEATER SPECIFICATIONS |
| •Reservoir Capacity: 30L |
| •Reservoir Dimensions: 20″ x 20″ x 24″ |
| •Temperature Range: Room Temperature to 200°C SILICONE OIL ONLY |
| •Power Requirements: 220-240V 50-60Hz 30A Single Phase 6-30P Plug |
| •Heating Wattage: 5000W / 22.7A |
| •Temperature Accuracy: +/- 0.2°C |
| •Pump Flow: 18.3L/Min |
| •Total Pump Lift: 6m |
| •Connection Size: 1/2″ MNPT |
| •Dimensions: 19″ x 19″ x 24″ |
| •Weight: 68lbs |
| STIRRER SPECIFICATIONS |
| •Horse Power: 0.5 |
| •Impeller Diameter: 4″ (2 included) |
| •Power Requirements: 110-120V 50-60Hz 15A |
| •Motor: 1/2 HP, TEFC, IP55 |
| •RPM: 350-1750 |
| •Mount Type: 3″ Tri-Clamp |
| •Bearing: SS, Carbon Steel Coupler |
| •Seal: FDA Lip Seal, Duralast 4331 Seal w/ Duraloy 5163 Case, Max 3PSI Continuous |
| •Shaft: .625″ Diameter x 32″ Exposed – 316SS, No Polish |
| •Impeller: (2) 4″ Marine Propeller, 3 Blades, Low Shear, 316SS, Set Screw |
| PACKING LIST | |
| 100L Solvent tank (200LB) w/ 12″ Bend 1.5″ TC | 1pc |
| 6″x3″ Hemi Reducer | 1pc |
| 1.5″ HP TC | 2pcs |
| 3″ HP TC | 1pc |
| 6″ HP TC | 1pc |
| 1.5″ Buna-N Gasket | 2pcs |
| 3″ Buna-N Gasket | 1pc |
| 6″ Buna-N Gasket | 1pc |
| 1.5″ Sight Glasses w/ Gaskets and Clamps (Attached) | 2pcs |
| RH-30L 30L 200°C Heater | 1pc |
| RH-30L Hosing – 6ft | 2pcs |
| 1/2 HP USA Made Variable Speed Triclamp Motor | 1pc |
| 32″ Rod | 1pc |
| 4″ Impellers | 2pcs |
| USALOK 1/2″ MNPT to 1/2″ Tube Stub | 2pcs |
| 1.5″ TC x 1/2″ Compression | 1pc |
| 1/2″ Compression Cap | 4 pc |
| 1/2″ Superlok Valve | 1pc |
| 1/2″ Tube Stub x 1/2″ Barb | 1pc |
